• 16" x 6.5" styled steel wheels
• P205/70R16 all-season BSW tires
• Compact spare tire
• Black side roof rails
• Body color fascias
• Lower bodyside accent cladding
• Body color grille
• Accent color liftgate applique
• Halogen headlamps
• Fog lamps
• Solar control glass
• Deep tint sunscreen glass
• Fold-away manual mirrors
• Variable intermittent windshield wipers
• Rear window wiper/washer
• Black door handles

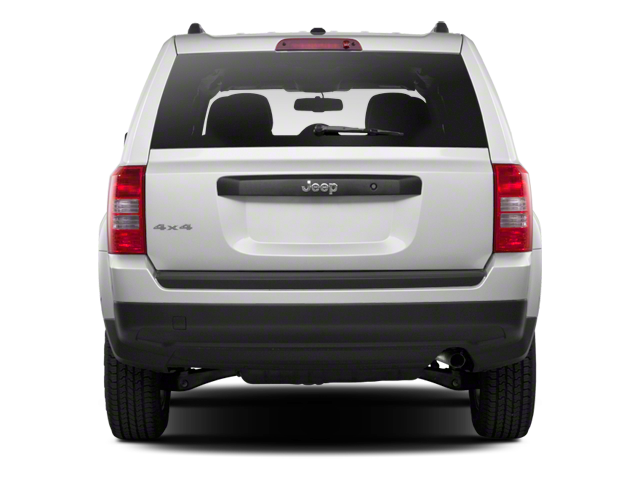

• Liftgate door w/fixed glass

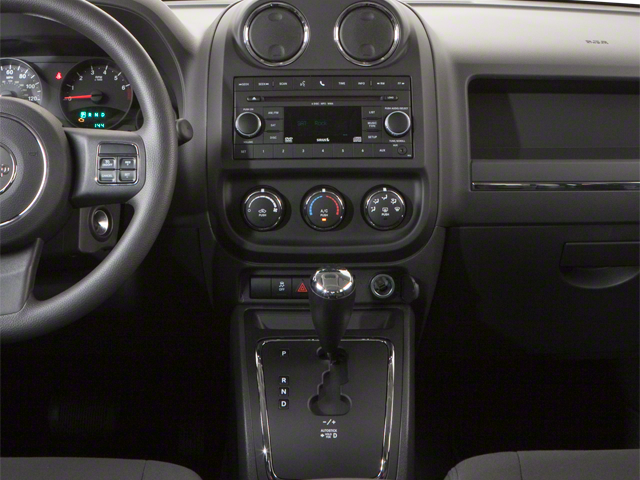

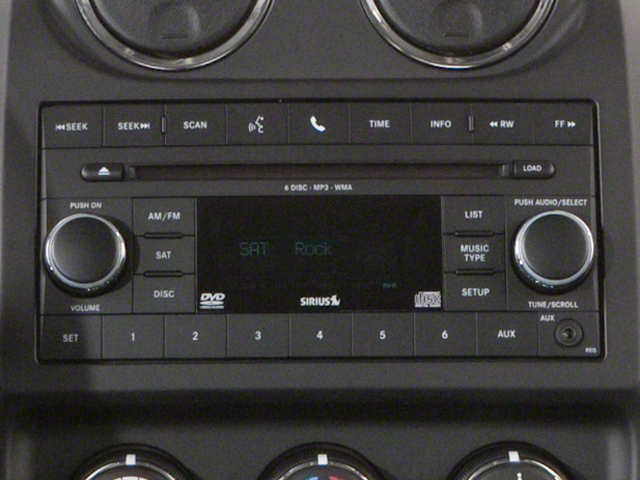

• UConnect 130 -inc: AM/FM stereo, CD/MP3 player
• Audio input jack
• (4) speakers
• Fixed long-mast antenna

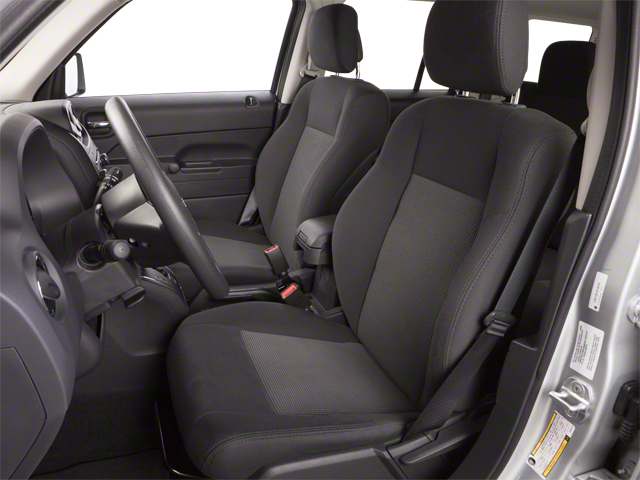

• Premium cloth bucket seats

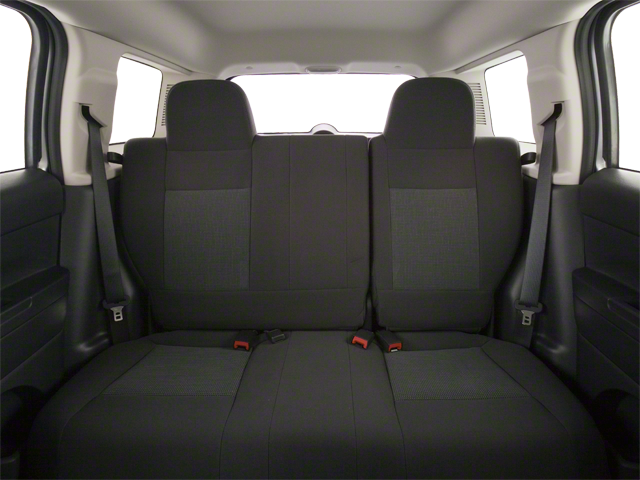

• 60/40 split-folding rear seat
• Active head restraints

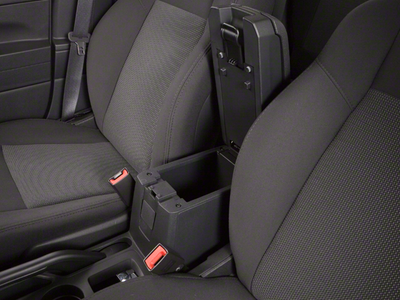

• Sliding armrest
• Full-length floor console
• Full floor carpeting
• Luxury front & rear floor mats

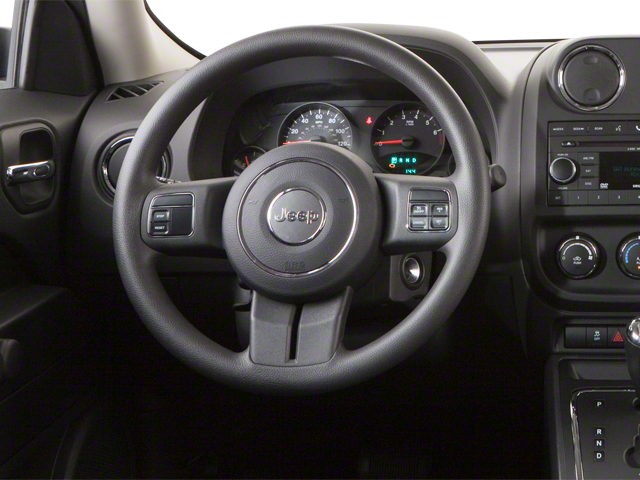

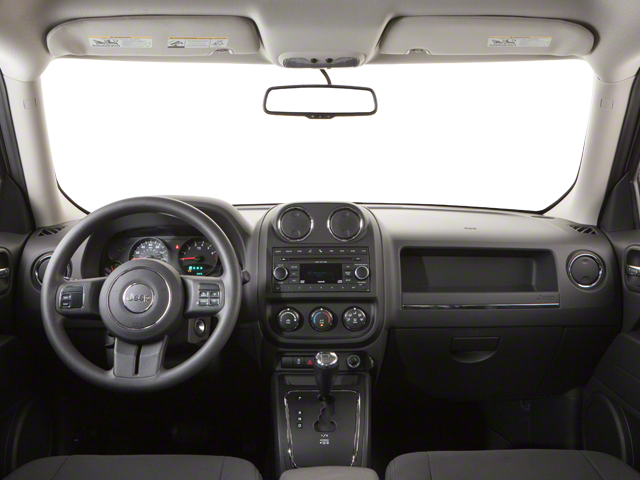

• Tilt steering column
• Instrumentation w/tachometer
• 120 MPH speedometer
• Outside temp gauge
• Speed control
• Pwr accessory delay

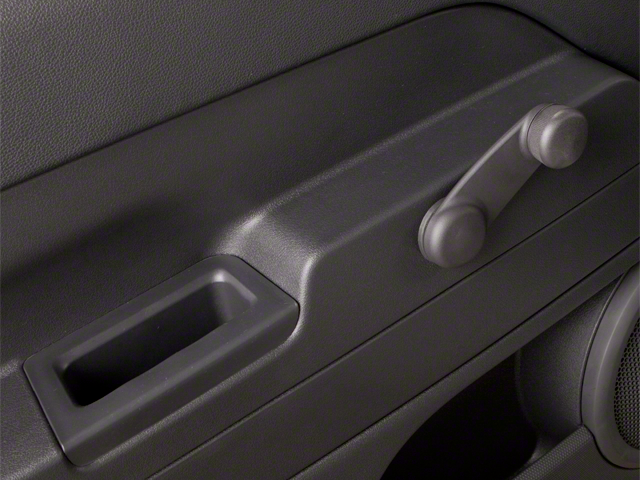

• Manual windows
• Manual door locks
• Sentry Key theft-deterrent system
• Air filtration
• Rear seat heat ducts
• Rear window defroster
• Illuminated cupholders
• 12V pwr outlet
• Bright interior accents
• Passenger assist handles
• Sliding sunvisors w/vanity mirrors
• Front dome lamp
• Map & dome reading lamps
• Interior removable/rechargeable lamp
• Fold-flat cargo floor

• Brake assist
• Electronic stability program
• Electronic roll mitigation
• Hill start assist
• Multistage dual front airbags
• Front & rear side curtain airbags
• Height adjustable front shoulder belts
• Front passenger seat belt alert
• Child safety rear door locks
• Tire pressure monitor warning lamp

2.0L DOHC 16V I4 DUAL-VVT ENGINE

• (STD)

• Vehicle
• EPA Classification: 2WD Sport Utility Vehicles
• Mileage
• Fuel Economy Est-Combined (MPG): 26
• EPA Fuel Economy Est - City (MPG): 23
• EPA Fuel Economy Est - Hwy (MPG): 30
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 525
• Maximum Alternator Capacity (amps): 120
• Cooling System
• Total Cooling System Capacity (qts): 7.2
• Weight Information
• Base Curb Weight (lbs): 3111
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 100
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 150
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Multi-Link
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.5 x 1.0
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 9.0 x 1.38
• Tires
• Front Tire Order Code: TLB
• Rear Tire Order Code: TLB
• Spare Tire Order Code: TBC
• Front Tire Size: P205/70R16
• Rear Tire Size: P205/70R16
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: 16.4
• Lock to Lock Turns (Steering): 2.88
• Turning Diameter - Curb to Curb (ft): 35.6
• Turning Diameter - Wall to Wall (ft): N/A
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 13.6
• Exterior Dimensions
• Wheelbase (in): 103.7
• Length, Overall (in): 173.8
• Width, Max w/o mirrors (in): 69.2
• Height, Overall (in): 65.5
• Track Width, Front (in): 59.8
• Track Width, Rear (in): 59.8
• Min Ground Clearance (in): - TBD -
• Rear Door Opening Height (in): 27.4
• Rear Door Opening Width (in): 45.1
• Liftover Height (in): 30.7

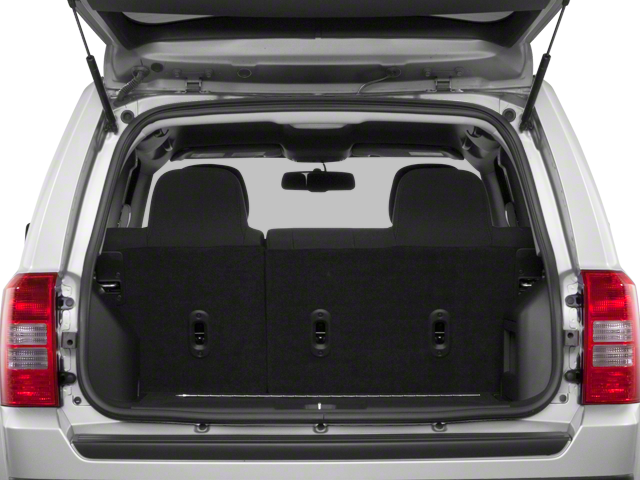

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): 45.1
• Cargo Box Width @ Wheelhousings (in): 38.0
• Cargo Box (Area) Height (in): 27.4
• Cargo Volume to Seat 1 (ft³): 53.5
• Cargo Volume to Seat 2 (ft³): 23.0
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 104.4
• Front Head Room (in): 41.0
• Front Leg Room (in): 40.6
• Front Shoulder Room (in): 54.5
• Front Hip Room (in): 52.3
• Second Head Room (in): 39.9
• Second Leg Room (in): 39.4
• Second Shoulder Room (in): 54.0
• Second Hip Room (in): 51.0
• Summary

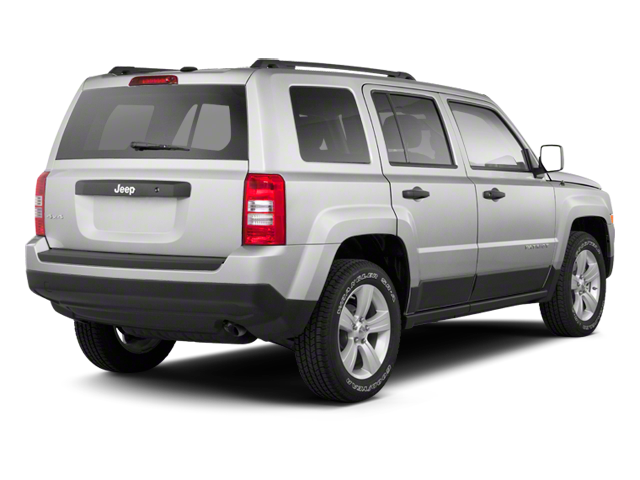

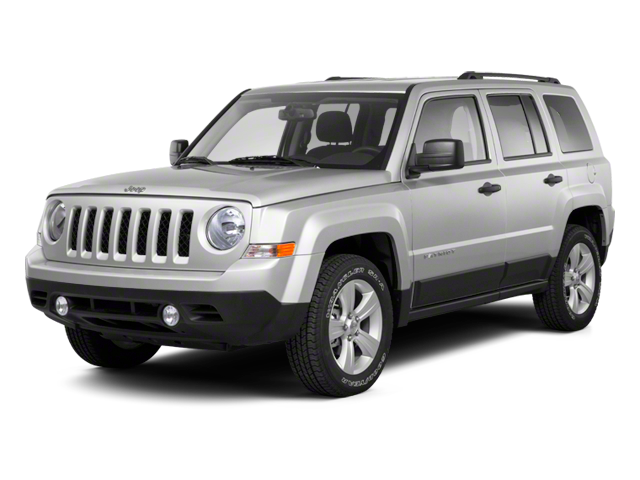

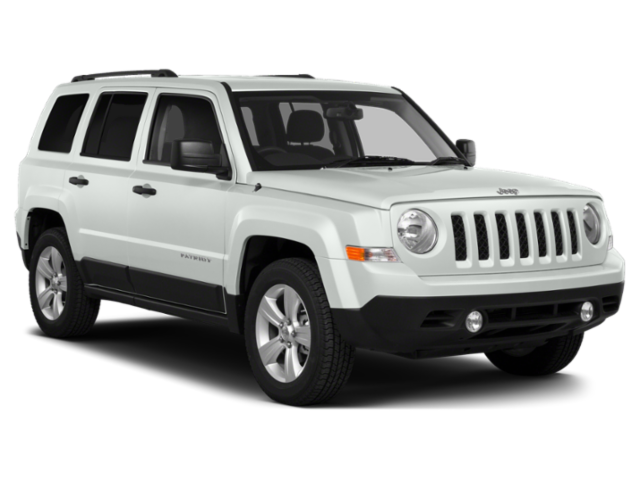

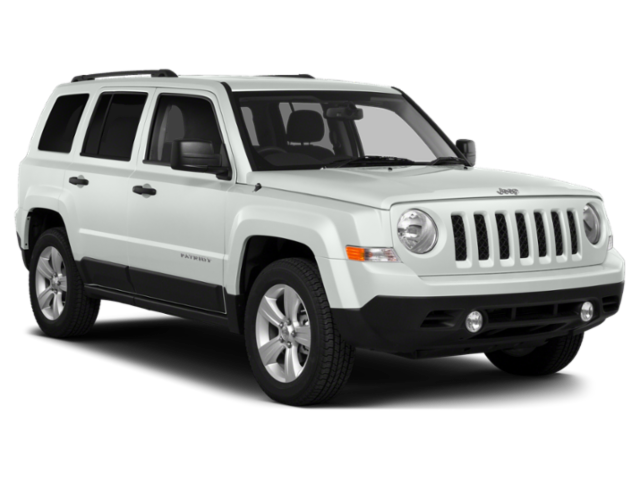

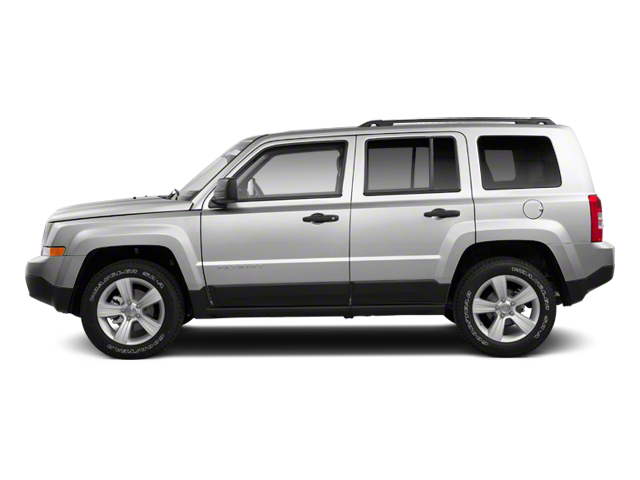

• Vehicle Name: Jeep Patriot
• Body Style: Sport Utility
• Emissions
• EPA Greenhouse Gas Score: 6 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 7.0
